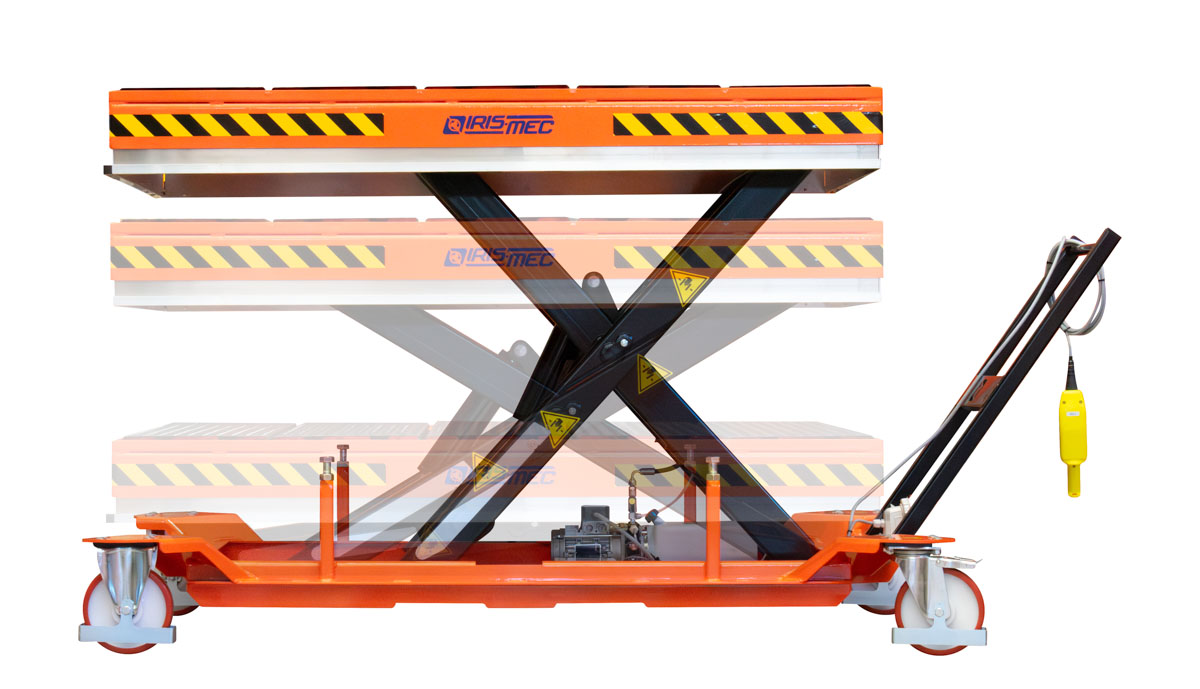

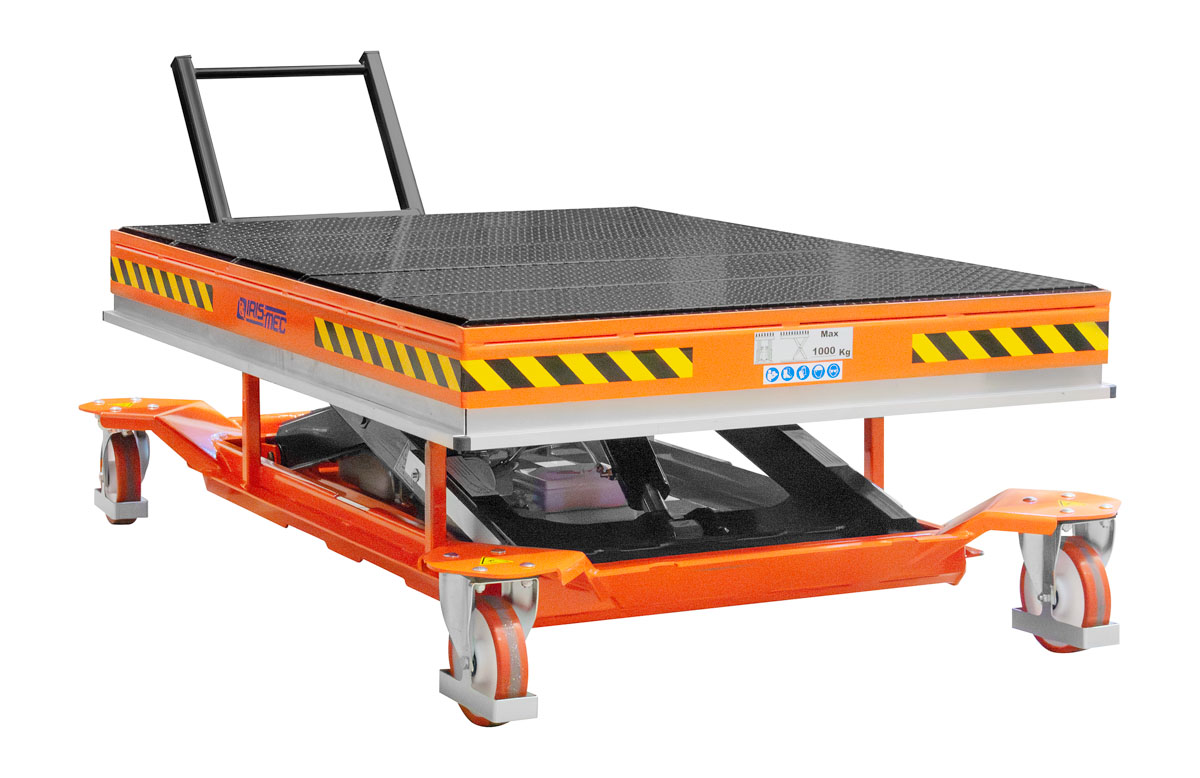

Lift table for engine disassembly and spare parts
CMM | Lift table for engine disassembly and spare parts
Disassemble engines with ease and recover spare parts effortlessly!

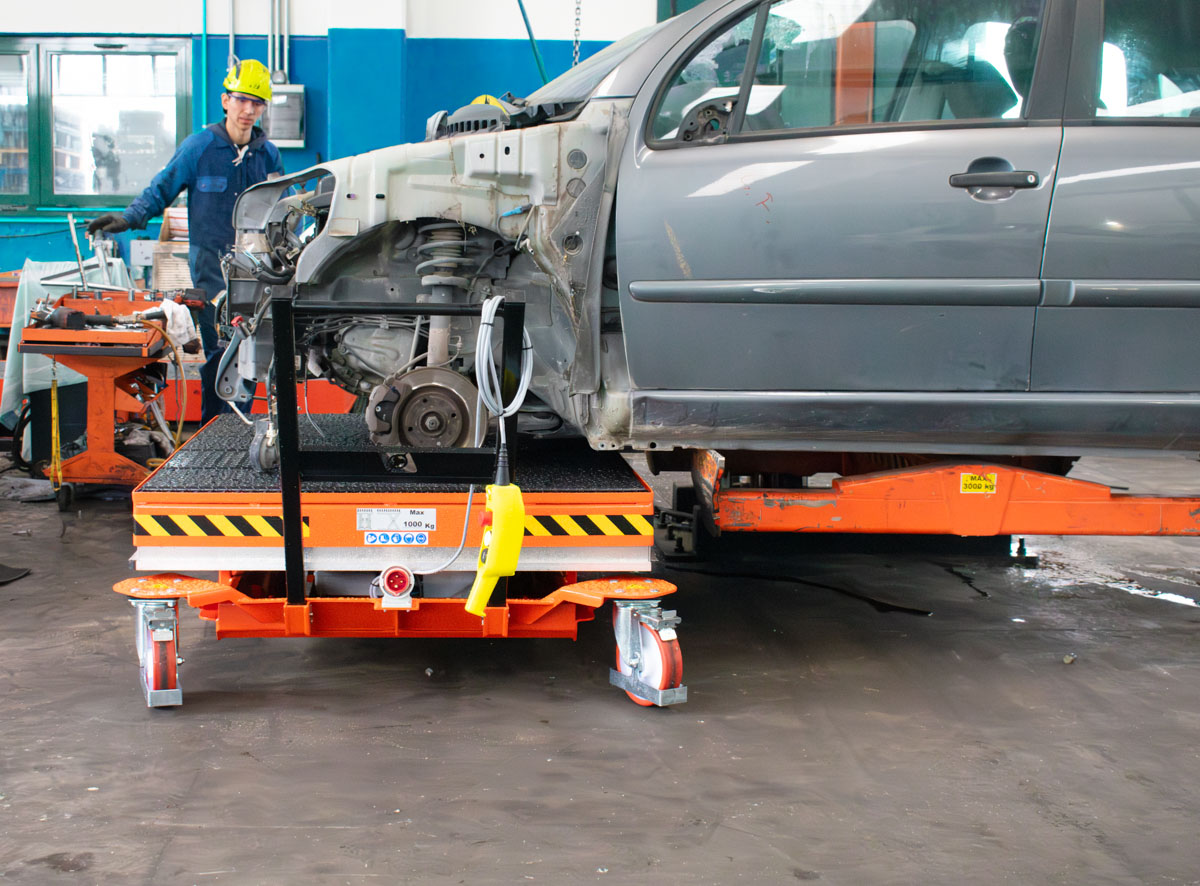

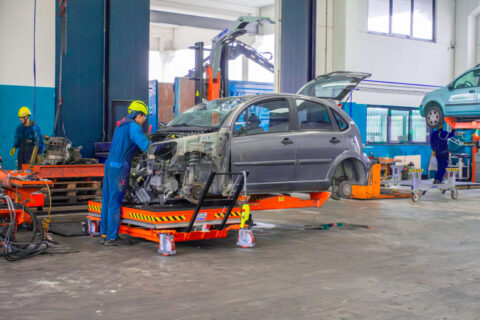

✅ Quick and effortless disassembly of high-quality engines and spare parts
✅ Optimum manoeuvrability in tight spaces
✅ Compatible with Iris-Mec lifts
Technical details
– Lifting capacity up to 1000 kg
– Up/down time: 12” / 18”

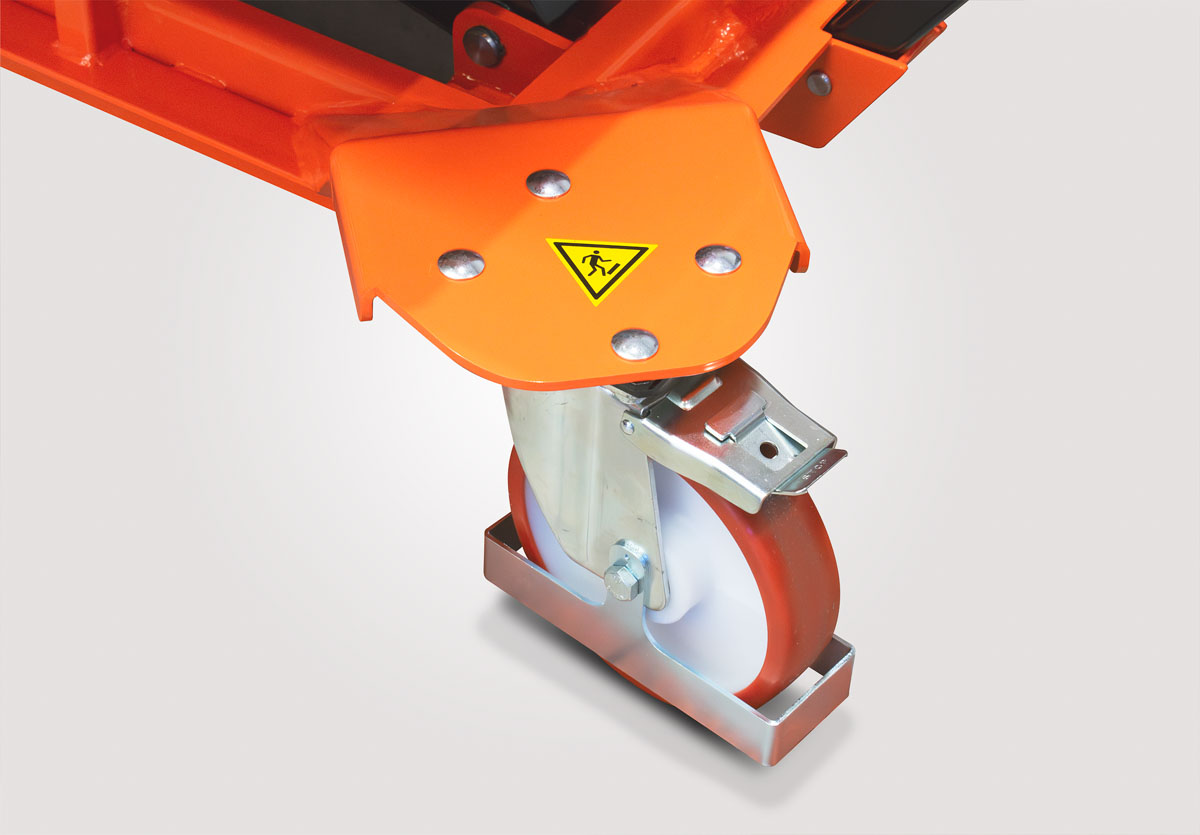

– With wheels for easy handling and movement

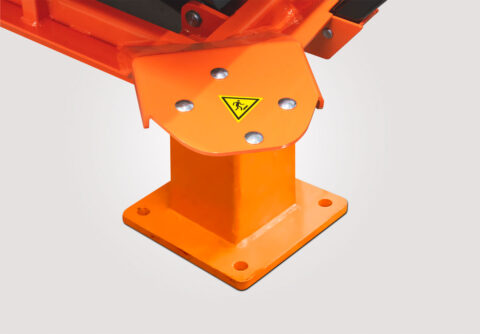

– Option without wheels for areas with no need of mobility

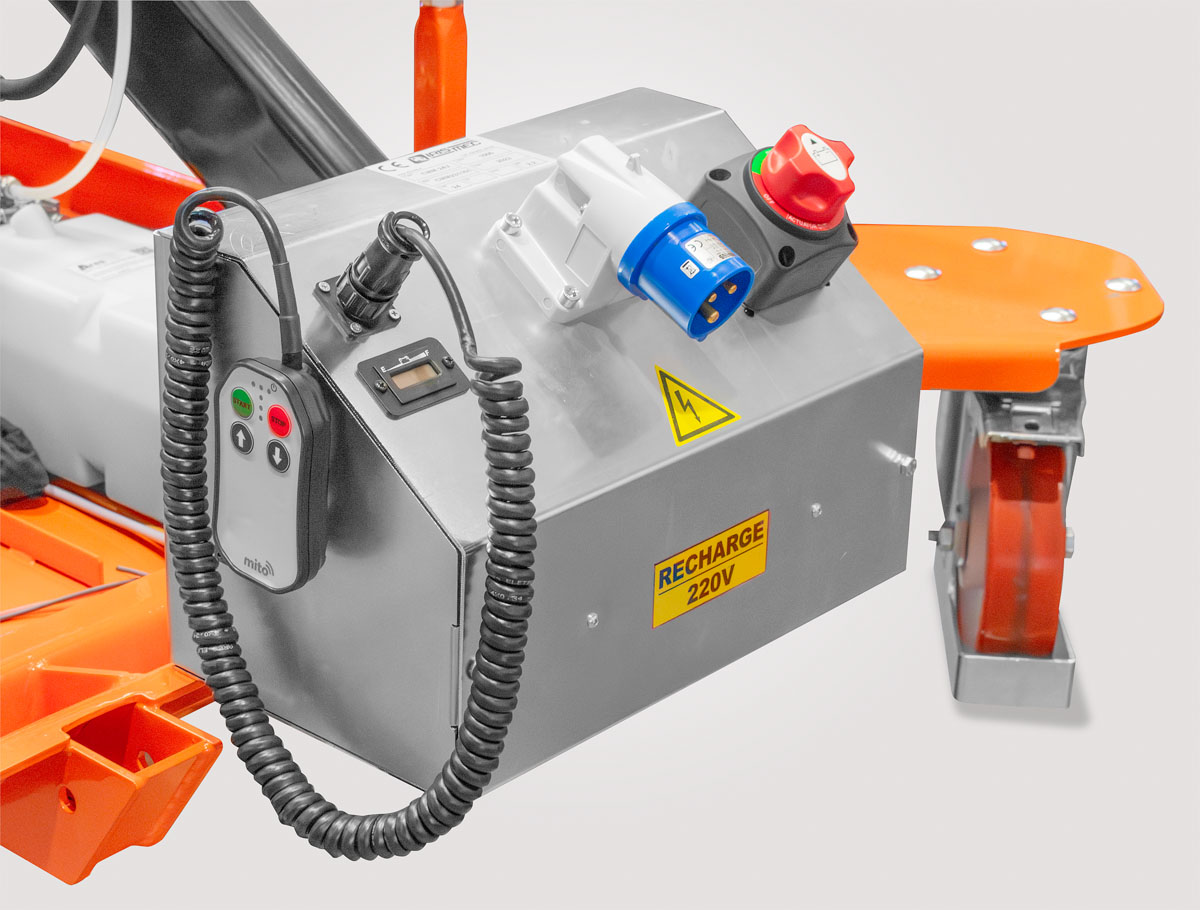

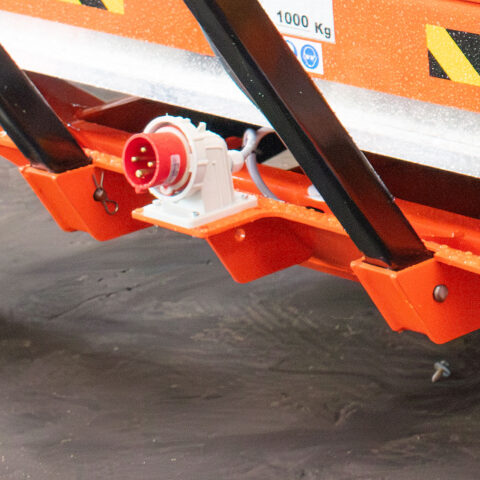

– Option with rechargeable battery or 380 V power supply
– Efficient, remote-controlled lifting system

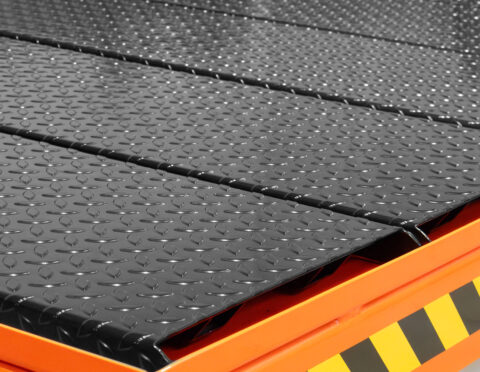

– Scratch-resistant surface for engine protection
– Plan with containment tank and drainage system
| CMM – 143N80400 | CMM-E – 143N80400 | |||
| Payload | Evenly distributed load – max | 1000 | 1000 | Kg |
| Lifting time | 12” – 18” | 12” – 18” | sec | |

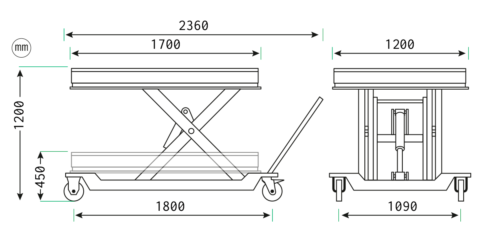

| Max lifting height | 1200 | 1200 | mm | |
| Max flow | 2,4 | 2,4 | l / min | |
| Max working pressure | 190 | 200 | bar | |
| Power supply | 1.1 kW – 380/400V | – | – | |
| Battery | – | 24 | V | |
| Battery charging | – | 220 | V | |
| ‘A’ Weighted sound pressure level (LPA) | < 70 | < 70 | dB | |
| Weight | 450 | 470 | Kg |
