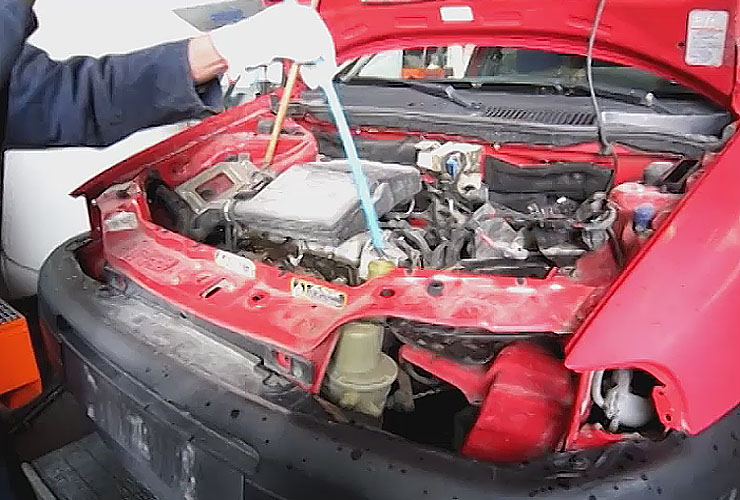

Complete recovery system with a circuit of pipes and pneumatic pumps for the recovery of any residual liquid from end-life-vehicles.
4 way fluid drainage system composed by 5 air pumps to drain 5 fluids
- Antifreeze
- Windscreen-wiper water
- Engine oil
- Brake oil
- Radiator’s water / Gear box oil drainage / Shock absorber oil ( with PFA only)
| NEW ISE / NEW ISK | |
|---|---|
| Engine oil drainage | 50 l/min - 11 UK gal/min Air pump |
| Brakes oil | 50 l/min - 11 UK gal/min Air pump |
| Gear box oil drainage | 50 l/min - 11 UK gal/min Air pump |
| Radiator’s water | 50 l/min - 11 UK gal/min Air pump |
| Windscreen-wiper water | 50 l/min - 11 UK gal/min Air pump |
| Gearbox oil | 50 l/min - 11 UK gal/min Air pump |
| Differential gear oil | 50 l/min - 11 UK gal/min Air pump |
| N° cycle-hour | 6/10 |
| Max working pressure | 6 Bar |
| Max flow | 50 l/min - 11 UK gal/min |
| Pneumatic console | |
| External tanks driven by a processor | |
| Weight | 280 kg - 618 Lbs |
| Overall dimensions | 990 x 650 mm h. 1350 mm - 39 x 26 in h. 54 in |
