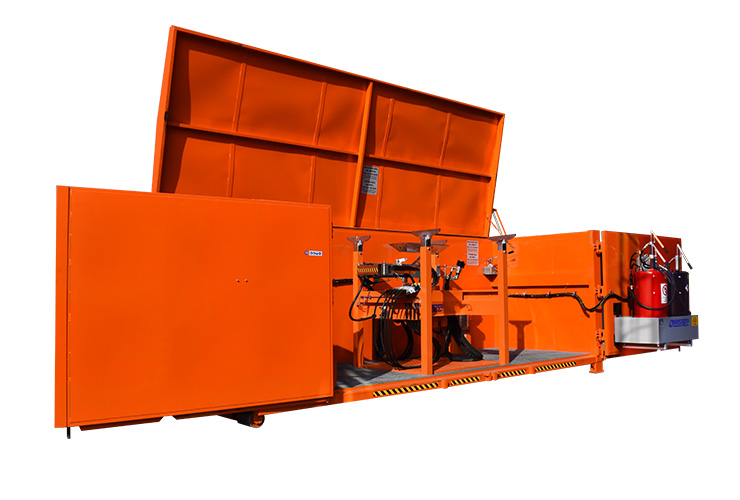

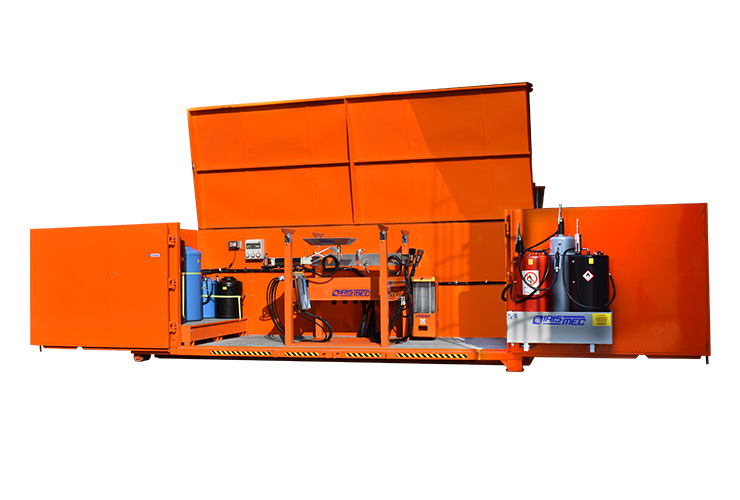

Complete mobile depollution system with container, depollution station, fluids recovery system and storage tanks.
ISC is an mobile depollution station for ELV, positioned inside a carriage container.

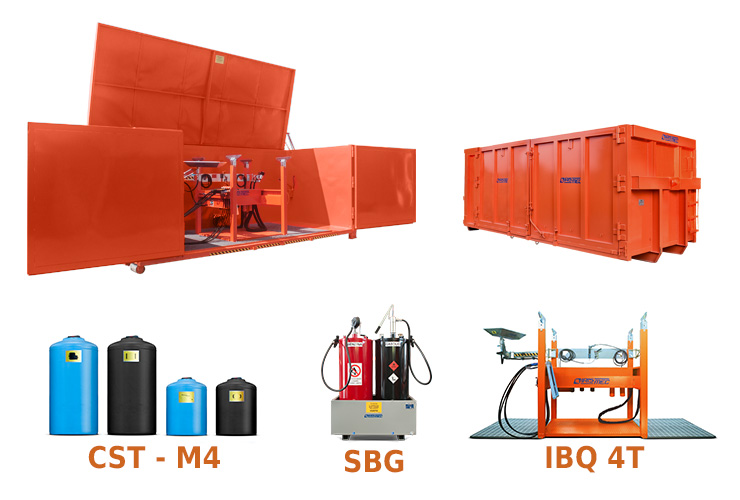

It’s composed by for the basic devices for depollution work flow. The equipment includes:

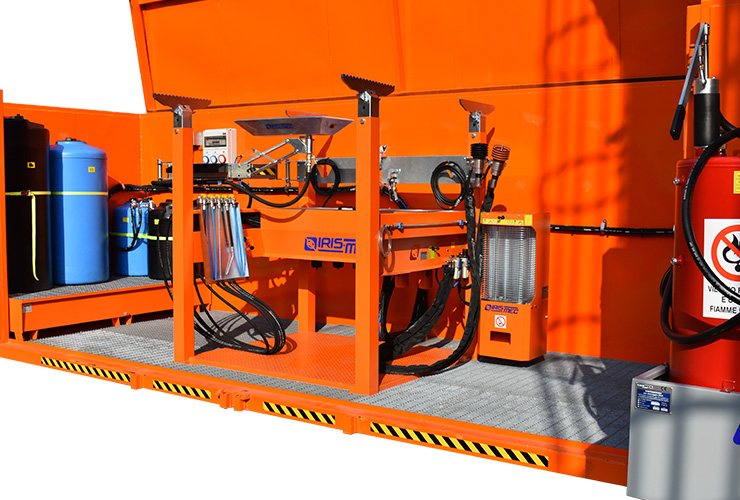

- IBQ-4t – Compact depollution station with fixed bridge.
- SBG – Fuel storage kit.

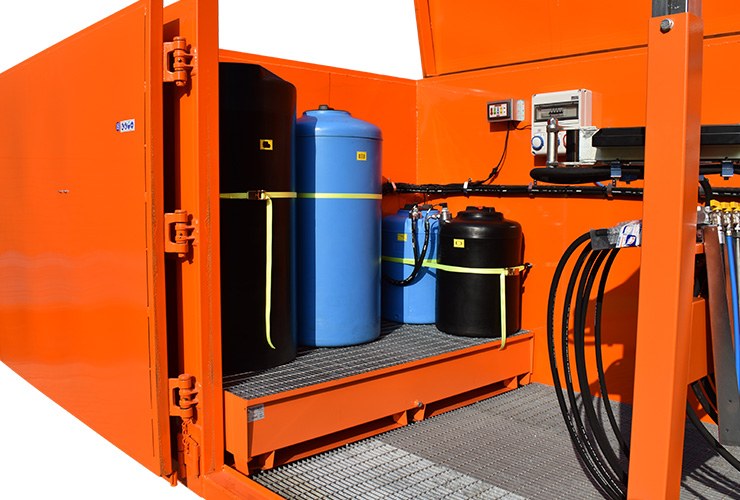

- KSL 4 – Liquid and oil storage kit with sound and visual monitoring system.

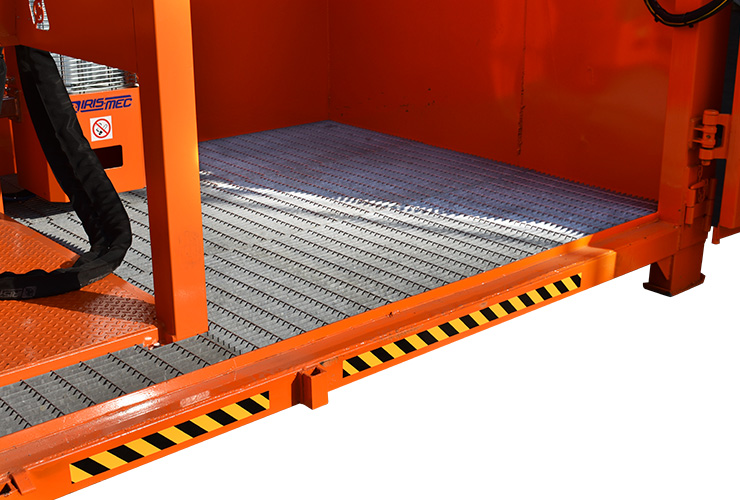

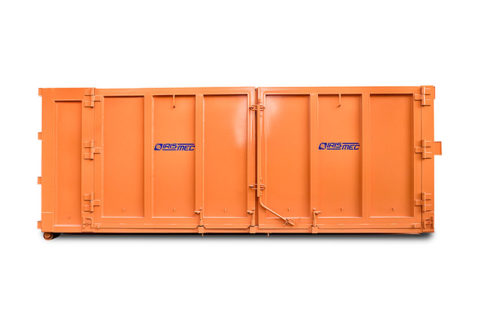

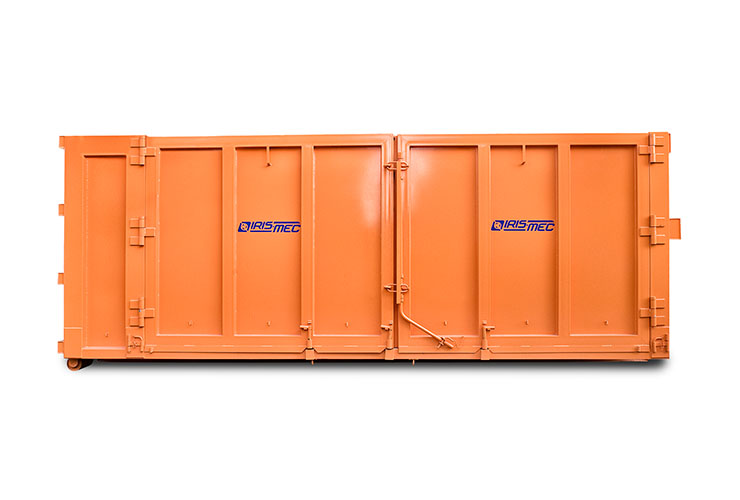

- CTN – Roll on-off body with two side doors, internal fixed ramp complete with anti-slip grids and a base for liquid containment.
The overall dimensions are 6650 x 2450 mm h 2150 mm – 261 x 96 in h.85 in.
| ISC | |
|---|---|
| CNT | |
| Weight | 25q - 5512 Lbs |
| Overall dimensions | 650 x 245 mm h 215 mm - 26 x 10 in h. 9 in |
| IBQ-4t | |
| Brakes oil | 50 l/min - 11 UK gal/min Air pump |
| Engine oil drainage | 50 l/min - 11 UK gal/min Air pump |
| Gearbox oil | 50 l/min - 11 UK gal/min Air pump |
| Differential gear oil | 50 l/min - 11 UK gal/min Air pump |
| Gear box oil drainage | 50 l/min - 11 UK gal/min Air pump |
| Windscreen-wiper water | 50 l/min - 11 UK gal/min Air pump |
| Radiator’s water | 50 l/min - 11 UK gal/min Air pump |
| Shock absorber oil | 50 l/min - 11 UK gal/min Air pump |
| Petrol | 50 l/min - 11 UK gal/min Air pump |
| Gasoil | 50 l/min - 11 UK gal/min Air pump |
| Puncher Beta air drill 500 w | |
| N° cycle-hour | 5/8 |
| Max working pressure | 6 Bar |
| Max flow | 50 l/min - 11 UK gal/min |
| Pneumatic console | |
| Max load | 4000 Kg - 8818 Lbs |
| Weight | 280 kg - 618 Lbs |
| Overall dimensions | 1500 x 1600 x h 1800 mm - 60 x 63 h 71 in |
| SBG | |
| Petrol storage | 250 l - 55 UK gal |
| Gasoil storage | 250 l - 55 UK gal |
| Capacity | 249 + 249 Lt - 55 + 55 Uk gal |
| Overall dimensions | 600 x 1000 mm h. 1800 mm - 24 x 40 in h. 71 in |
| Weight | 140 Kg - 310 Lbs |
Standard quipment
Adjustable suction pressure
Optionals

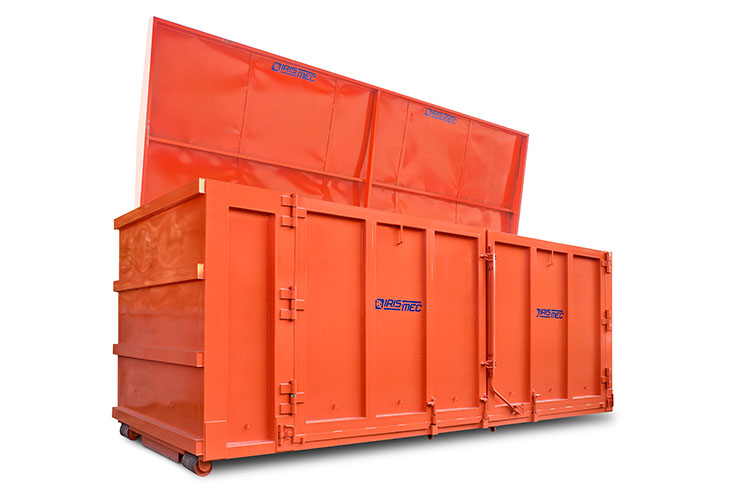

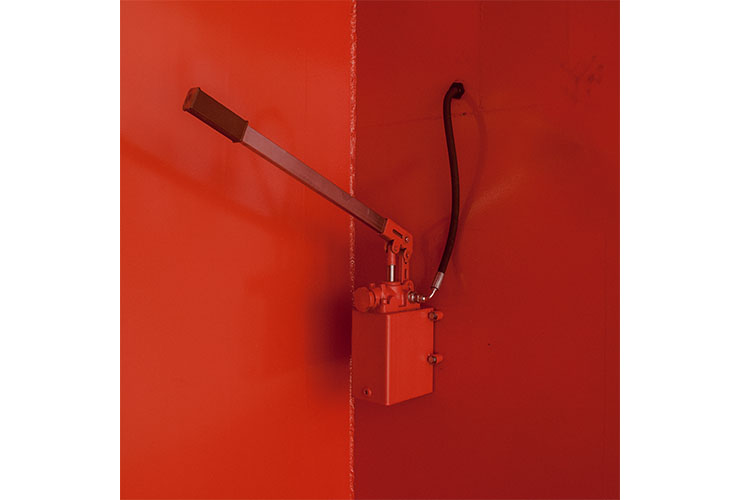

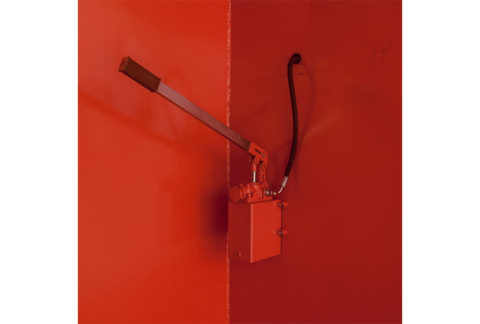

- Hydraulic roof;
- Diesel Motor compressor 11 HP with 2 kw generator – 270 lt,
