KSC | Shear support

Support designed to help the operator to effortlessly hold the weight up of the shear during the disassembly phases.

KSC – Shear support – optional to CNT control unit

✅ Allows continuous use of the shear without fatigue;
✅ Reduces the risk of sudden movements or accidental impacts;
✅ Promotes the well-being and safety of the operator;
✅ After-sales optional installation;

Support designed to help the operator to effortlessly hold the weight up of the shear during the disassembly phases.

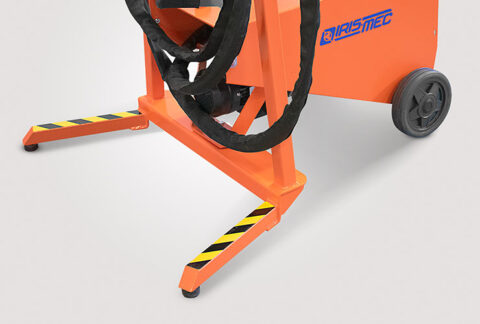

The frame is fixed to the control unit and is arranged with a balancer-holder ring (balancer not included) which makes the shear extremely easy to handle and the movements very fluid.

Technical data
Payload MAX 18 Kg
Work area 2 x 1,5 m
Weight 33 Kg
Dimensions 970 x 813 x h 2041 mm
