Wheeled system designed for the suction and distribution of petrol fuel tanks of End-Life-Vehicles.

Wheeled system designed for the suction and distribution of petrol fuel tanks of End-Life-Vehicles.

The fuel recovery unit is equipped with a suction system, composed of a circuit of pipes and pneumatic pumps for recovering residual fuel, and a storage tank with a maximum capacity of 220 liters.
Once the fuel has been recovered from the tanks, it can be reused using the special dispensing gun.

Optional equipment on request:

CCB
Petrol drainage 50l/min - 11 Uk gal Air pump
Distribution 70 l/min - 16 uk gal/min
Weight 155 Kg - 342 Lbs
Overall dimensions 850 x 700 mm h. 800 mm - 35 x 28 in h. 32 In

OPTIONAL CCB

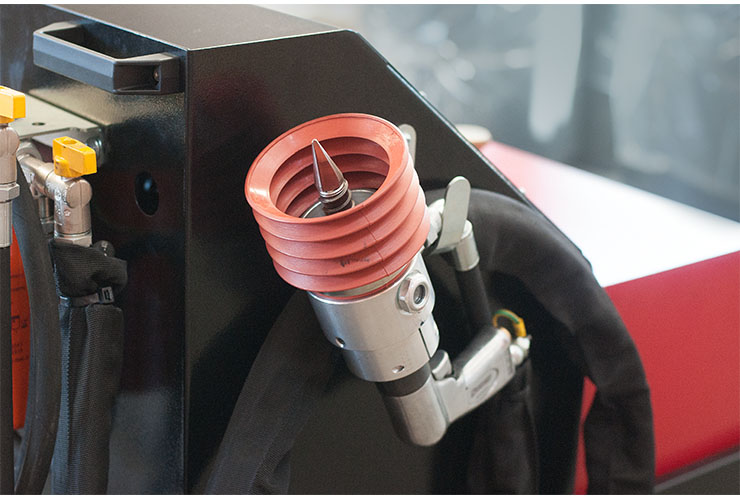

Puncher with air drill
Water absorber
Automatic gun 50 l/min - 11 Uk gal
