Power pack and Catalytic converter cutter





Power pack and Catalytic converter cutter

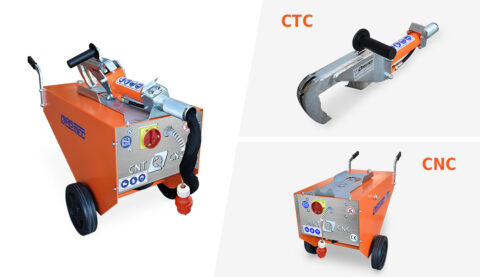

The CNC is a control unit equipped with a CTC, guillotine shear designed to keep the catalyst device stable during cutting, it allows disassembly in an easy and safe way at very low maintenance costs.

This system guarantees practicality and rapidity of work at low costs compared to traditional shears.

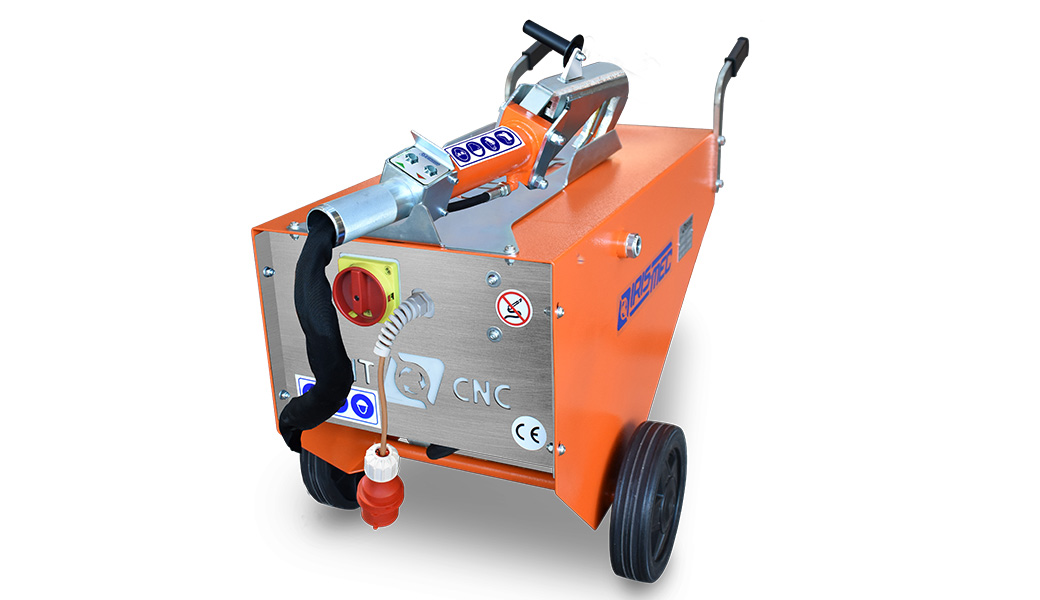

CNC is professional three phase junction box with 1.1 KW engine for CTC catalytic cutter. It is provided with an automatic on-off system.

5 mt of pipes Included.

CNC
Engine 1,1kW / 400V
Max working pressure max 200 bar
Max flow 3 l / min - 0,65 Uk gal/min
N° cycle/hour 5/8
Weight 60 Kg - 133 Lbs
Overall dimensions 860 x 693 mm h. 540 mm - 34 x 28 In h. 22 In

CTC
Weight 9 Kg - 20 Lbs
Max opening Cutter 90 mm - 4 In

CNC Standard equipment
Closed Casing
Automatic working cycle
Automatic power on-off system
