IBQ VS | Compact drainage system with PFT-Strong and Visual

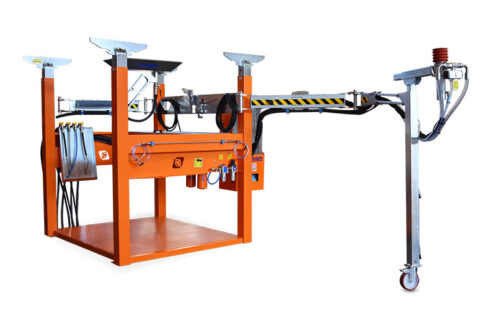

  • IBQ 4t with PFT-Strong puncher and Visual

Complete depollution system with a work area of 4m³- 142 ft³ with PFT-Strong fuel tanks drill with remote control and Visual external visual plug-in for fuel inspection

Complete depollution system with a work area of 4m³- 142 ft³ with with Fuel tanks drill with remote controls and Kit for visual inspection of fuel levels.

IBQ VS is equipped with:

  • ISQ: Fluids recovery system;
  • PFT – Strong: Fuel tanks drill with remote control
  • PFA: Shock-absorbers punch
  • BRL: Adjustable arm for drainage oil
  • Visual: System for monitoring and selecting the quality of fuels.

Thanks to its small size, IBQ-4t can be installed in a minimum working area of 4m3 – 142 ft³.

Optional equipment:

  • KPL: Liquid weighing kit with “Industry 4.0” technology;
  • AdBlue Kit: Liquid suction equipment;

IBQ - 4t
Engine oil drainage 50 l/min - 11 UK gal/min Air pump
Shock absorber oil 50 l/min - 11 UK gal/min Air pump
Brakes oil 50 l/min - 11 UK gal/min Air pump
Gear box oil drainage 50 l/min - 11 UK gal/min Air pump
Radiator’s water 50 l/min - 11 UK gal/min Air pump
Windscreen-wiper water 50 l/min - 11 UK gal/min Air pump
Gearbox oil 50 l/min - 11 UK gal/min Air pump
Differential gear oil 50 l/min - 11 UK gal/min Air pump
Petrol 50 l/min - 11 UK gal/min Air pump
Gasoil 50 l/min - 11 UK gal/min Air pump
N° cycle-hour 5 / 8
Max working pressure 6 Bar
Max flow 50 l/min - 11 UK gal/min
Pneumatic console
Puncher Beta air drill 500 w
Max load 4000 Kg - 8818 Lbs
Weight 280 kg - 618 Lbs
Overall dimensions 1500 x 1600 mm h. 1800 mm - 60 x 63 in h. 71 in

IBQ 4t Optionals
Visual Puncher IBQ-V
