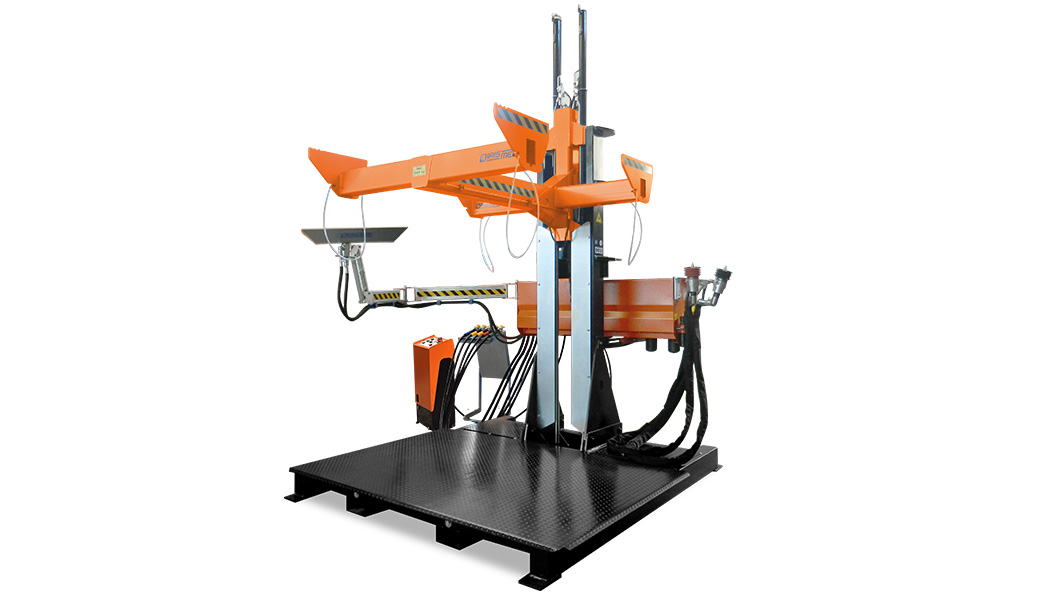

Complete depollution system with recovery and storage systems for fluids from ELV.
Complete pneumatic depollution system with recovery and storage systems for fluids from ELV.
IBC is equipped with:
- Compact mobile lift PMC 30, with a maximum load capacity of 3000 Kg– 6613 Lbs;
- ISQ Fluids recovery system;
- Fuel tanks drill;
- BRL Adjustable arm for engine oil recovery;
Optional equipment on request:
- “Visual” Kit for visual inspection of fuel levels.
- AdBlue Kit: Liquid suction equipment.
| IBC / IBC EC | |
|---|---|
| Engine oil drainage | 50 l/min - 11 UK gal/min Air pump |
| Shock absorber oil | 50 l/min - 11 UK gal/min Air pump |
| Brakes oil | 50 l/min - 11 UK gal/min Air pump |
| Gear box oil drainage | 50 l/min - 11 UK gal/min Air pump |
| Radiator’s water | 50 l/min - 11 UK gal/min Air pump |
| Windscreen-wiper water | 50 l/min - 11 UK gal/min Air pump |
| Gearbox oil | 50 l/min - 11 UK gal/min Air pump |
| Differential gear oil | 50 l/min - 11 UK gal/min Air pump |
| Petrol | 50 l/min - 11 UK gal/min Air pump |
| Gasoil | 50 l/min - 11 UK gal/min Air pump |
| N° cycle-hour | 5/8 |
| Max working pressure | 6 Bar |
| Max flow | 50 l/min - 11 UK gal/min |
| Pneumatic console | |
| Puncher Beta air drill 500 w | |
| Max load | 3000 Kg - 6613Lbs |
| Weight | 1400 kg - 3086Lbs |
| Overall dimensions | 2400 x 2100 mm h 3300 mm - 94 x 82 in h 129 in |

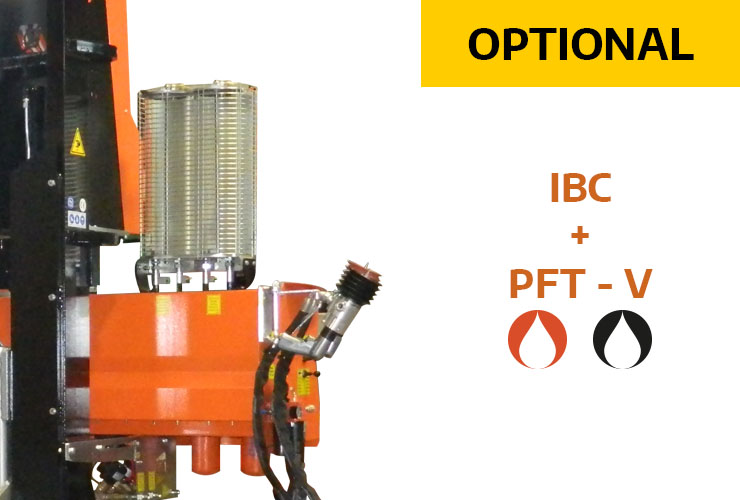

| IBC /IBC EC Optionals |
|---|
| Visual Puncher |
