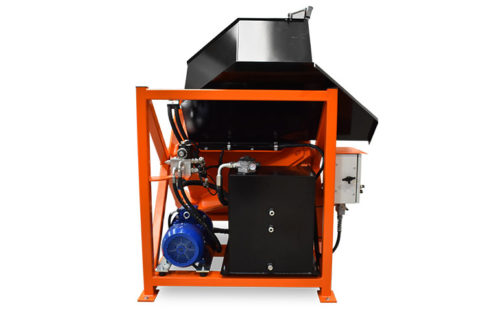

SC | Rim breaker

This machine is designed to destroy the aluminium rim in order to make it useless. The rim breaker can process up to 180 rims per hour in an easy and safe way.

SC
Engine 7.5 kW 400V 3 ~
Max working pressure 80 / 140 bar
Compressed air 6 bar
Max flow 54 l / min
N° cycle/hour Max 180
Min. rim size 15”
Max. rim size 23”
Max. rim width 340 mm
Weight 1500 kg
Overall dimensions 1900 x 1550 x 1800 mm

Standard Equipment

  • Locked casing
  • Automatic working cycle
  • Automatic power off
