Complete recovery system with a circuit of pipes and pneumatic pumps for the recovery of any residual liquid from end-life-trucks.

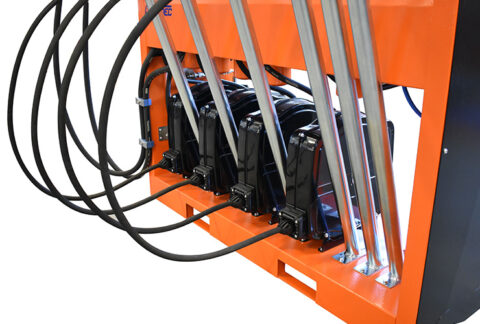

The suction system allows the operator to depollute the heavy-vehicles with its circuit of extendable hoses and pneumatic pumps, thanks also to 2 trolleys for collecting engine oil, differential and antifreeze oils.

Optional equipment on request:

  • PFT-S Fuel tank drill with remote controls;
  • Puncher Support with wheels;
  • Petrol drainage kit;
  • Visual: Fuel control quality kit;

IST
Engine oil drainage 50 l/min - 11 UK gal/min Air pump
Gear box oil drainage 50 l/min - 11 UK gal/min Air pump
Radiator’s water 50 l/min - 11 UK gal/min Air pump
AdBlue 50 l/min - 11 UK gal/min Air pump
Gasoil 70 l/min - 16 UK gal/min Air pump
N° cycle-hour 4/6
Max working pressure 6 Bar
Max flow 50 l/min - 11 UK gal/min

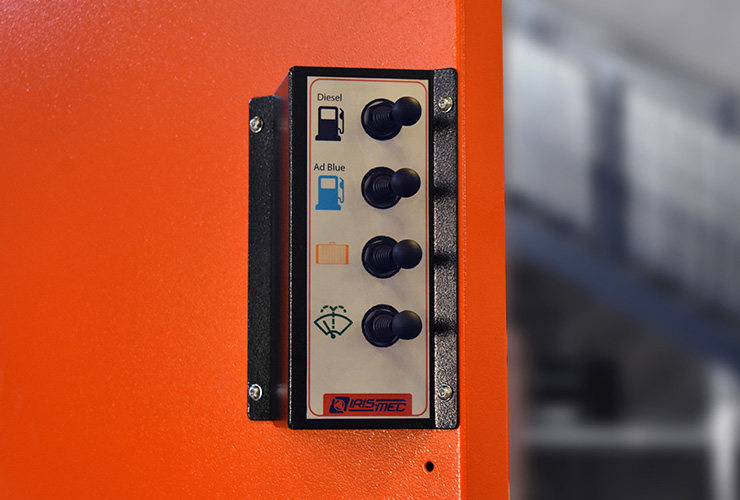

Pneumatic console
External tanks driven by a processor
Weight 380kg - 838 Lbs
Overall dimensions 990 x 650 mm h.1850 mm - 39 x 26 inch h. 72 inch
Tubes length Min 2 m / Max 12 m - Min 79 inch / Max 472 inch

IST Optional
PFT-S Puncher
Puncher Support with wheels
Petrol drainage
“Visual” fuel quality control kit
