IBN | Vessels depollution equipment

Fluid Drainage Air System composed by 4 vacuum pumps for each single fluid.
Composed by Box BMC-2C, IST, RGF, SBG, CFS e motocompressor.

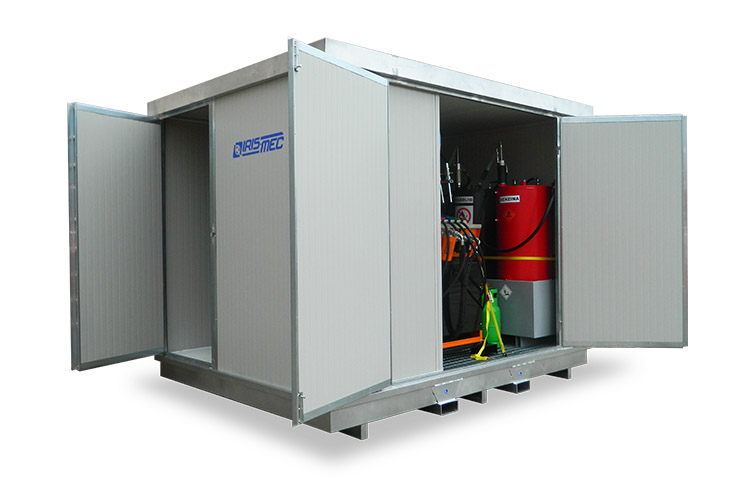

BMC 2-C
Overall dimensions 2000x3/3500x h2400
Weight 350 kg

ISK
Console Pneumatic
Brakes oil drainage Air pump 15 gpm(UK)
Engine oil drainage Air pump 15 gpm(UK)
Gear box oil drainage Air pump 15 gpm(UK)
Windscreen wiper water drainage Air pump 15 gpm(UK)
Radiator’s water drainage Air pump 15 gpm(UK)
External tanks Driven by a processor
N° cycle / hour 6/10
Max working pressure 87 psi
Max flow 11 gpm(UK)
Tubes length Minimum 79" extensible up to 472"
Weight 617.3 lb
Overall dimensions 39” x 25.6” x h. 53”

SBG
Petrol drainage 50 l/min
Petrol gasoil 50 l/min
Capacity 249+249lt
Overall dimensions 60x100xh180 mm
Weight 140 kg

CFS
Overall space 65x h150 mm
Capacity 800 Lt
Weight 10 kg

Motocompressor cod.326010
Mechanical power 11 Hp
Electric power 5,5 kw three phase / 3 kw mono phase
Pressure 14 Bar
Power supply Gasoil
Capacity 200 Lt
Weight 215 kg
Overall dimension 1460x460x1140 mm
